Detailed Analysis of Air Disc Brake Caliper Systems

Detailed Analysis of Air Disc Brake Caliper Systems

In the world of heavy commercial vehicles, safety is paramount. For trucks, buses, and tow trucks carrying tonnes of weight, an effective braking system directly impacts not only the vehicle's safety but also the safety of everyone on the road. This is where air disc brake caliper systems, representing the pinnacle of modern heavy-duty braking technology, come into play. The superior performance, durability, and control they offer compared to traditional drum brakes make these systems indispensable for today's fleets.

So, what exactly are these systems, and what are the details that make them so successful under heavy loads? Let's take a closer look.

What Is an Air Disc Brake Caliper System and Why Is It So Important?

In its simplest terms, an air disc brake caliper system is a mechanism that applies pressure to a vehicle's brake disc using compressed air, slowing or stopping the vehicle through friction. The primary reason for its use in heavy commercial vehicles is its ability to quickly and safely convert high kinetic energy into thermal energy.

Heavy vehicles require much more energy to stop than passenger vehicles. When travelling at high speeds or on sloped terrain with heavy loads, it is vital that the brake system performs instantly and consistently. Air disc brakes minimise the risk of fade even under these challenging conditions, providing consistent and powerful braking.

Basic Components of the System

An air disc brake system is not just a caliper. Its main components and their functions are as follows:

1. Brake Disc (Rotor): A circular part made of cast iron or special alloys that rotates with the wheel. It is the surface that the brake pads press against during braking. It plays a critical role in heat dissipation.
2. Brake Pads: These are parts made of composite materials with a high friction coefficient that are located inside the caliper and press against both surfaces of the disc during braking. They are the main consumable parts that wear out.

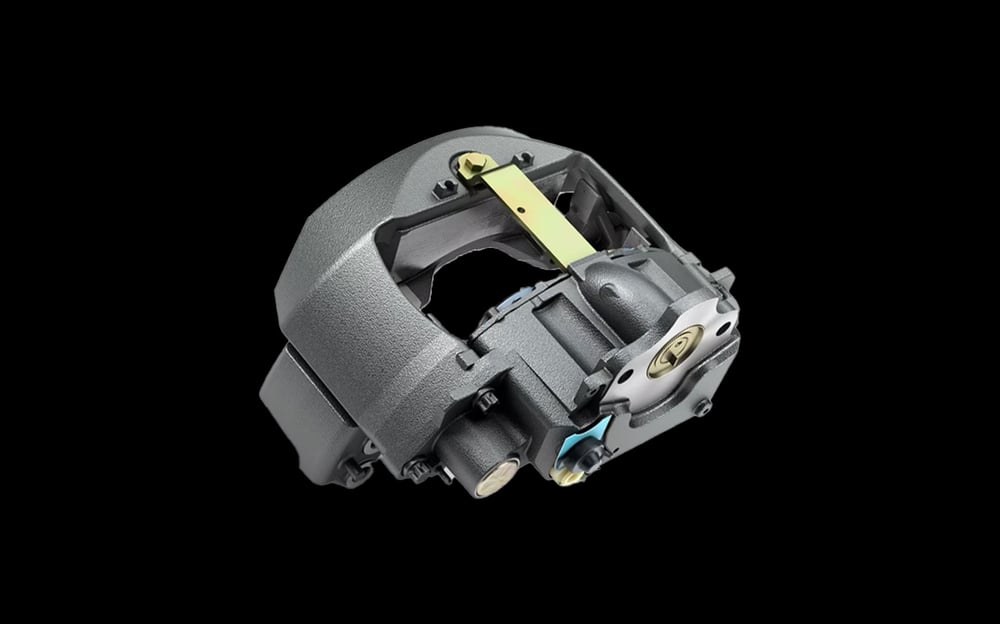

3. Brake Caliper: The main body of the system. It houses the brake pads and transmits the braking force to the disc. It is typically available in one of two main types:
• Fixed Caliper: Does not move during braking, contains multiple pistons (usually on both sides of the disc), and the pistons push the pads towards the disc.
• Floating Caliper: A single or two pistons are located on one side of the disc. While the pistons push the inner pad against the disc, the caliper body moves on sliding pins, enabling the outer pad to apply pressure to the disc. Both types can be used in heavy-duty vehicles, but the floating type may be more common.
4. Caliper Pistons: These are the elements that receive mechanical force from the air brake actuator and push the brake pads towards the disc. In air-hydraulic systems, where air pressure is converted into hydraulic pressure, hydraulic pistons may also be present, but in pure air systems, they act as direct mechanical actuators.
5. Air Brake Actuator / Chamber: This is the air-operated part of the brake system. When the brake pedal is pressed, pressurised air from the brake valve fills this actuator. The diaphragm or piston inside converts the air pressure into a mechanical thrust force and transmits this force to the caliper mechanism.
6. Connecting Elements and Mechanisms: These are arms, shafts or direct thrust mechanisms that transmit the force from the air brake actuator to the caliper pistons. These mechanisms may vary depending on the design of the caliper (e.g. direct or lever thrust, unlike the S-cam system).
7. Air System: The main system consisting of a compressor, air tanks, regulators, brake valves and air lines that provides the pressurised air required for braking.

Operation: The Power of Pressurised Air

The operation of the air disc brake system is simple in principle but its details are an engineering marvel:

1. Brake Request: When the driver presses the brake pedal, this movement is transmitted to the brake valve.
2. Air Flow: The brake valve allows high-pressure air stored in the air tanks to flow to the air brake actuators on the wheels.
3. Mechanical Force Generation: The pressurised air entering the actuator moves the diaphragm or piston inside it. This movement is transmitted to the caliper pistons via the connected mechanism (rod or lever).
4. Brake Pad Contact: The caliper pistons squeeze the brake pads against the brake disc using the force transmitted to them. If it is a floating caliper, while the piston pushes one pad, the caliper body also slides, allowing the other pad to approach the disc.
5. Friction and Deceleration: The high friction force generated between the brake pads and the disc surface slows down the rotating disc, causing the wheel and therefore the vehicle to slow down or stop. During this process, kinetic energy is converted into heat energy.
6. Release: When the driver removes their foot from the brake pedal, the brake valve cuts off the air flow to the actuators and allows the air inside the actuator to escape. As the air pressure drops, the pistons retract and the pads separate from the disc, ending the friction.

Advantages of Air Disc Brake Calipers: Why Are They Preferred?

The powerful advantages behind the widespread use of air disc brake systems in heavy commercial vehicles are as follows:

• Superior Braking Performance and Consistency: Thanks to the open structure of the discs and the more direct contact between the pads and discs, heat is distributed much more effectively. This dramatically reduces the risk of brake fade, especially during prolonged or intense braking. Braking force is less affected by temperature fluctuations, resulting in shorter and safer stopping distances.
• Effective Heat Management: The open design of the discs allows heat to dissipate quickly into the surrounding air. Some discs feature special cooling channels (vented discs), which further enhance heat dissipation. Better heat management extends pad and disc life and maintains braking efficiency.
• Reduced Maintenance Requirements and Easy Service: They have fewer moving parts than drum brakes (e.g., S-cam, springs, adjusters). Brake pad wear can usually be easily checked visually or with electronic sensors via the caliper. Brake pad replacement is generally faster and more practical than with drum brakes. Automatic adjustment systems eliminate the need for manual adjustment in drum brakes.
• Longer Service Life (Average): Better heat management ensures more balanced pad wear. Additionally, the system's simpler design can reduce the potential for malfunctions (with proper maintenance).
• Improved Control and ABS/EBS Integration: Air disc brakes provide a more linear response to pressure applied to the brake pedal. This offers the driver more precise control. They are fully compatible with Electronic Brake Systems (EBS) and Anti-Lock Braking Systems (ABS), preventing wheel lockup and helping maintain vehicle stability even in challenging road conditions. They also serve as the foundation for Modern Emergency Braking Systems (AEBS).

Potential Disadvantages and Considerations

Like any system, air disc brakes have some challenges:

• Higher Initial Investment Cost: They typically have a higher initial installation cost compared to traditional drum brake systems. The precise manufacturing processes and materials used contribute to this cost.
• Spare Part Costs and Expertise Requirements: Caliper components (pistons, seals, special greases) and discs may be more expensive than drum brake components. Diagnosing, repairing, and maintaining the systems requires specialised knowledge and experience with air systems and caliper mechanisms. Improper installation or the use of low-quality parts can pose serious safety risks.

Maintenance and Usage Tips: Extend the Life of Your System

Regular maintenance is essential to keep your air disc brake system performing at its best:

• Regular Visual Inspections: Before each trip, check the discs for visible damage (cracks, excessive scratches), excessive wear on the pads, or abnormal conditions around the calipers (air leak noise, oil/grease leakage).
• Wear Limits: Periodically measure whether the brake pads and discs have reached the minimum wear limits specified by the manufacturer. Monitor wear indicators. Replace any parts that exceed the limits.
• Caliper Mechanism Inspection: Ensure that the caliper moves freely (floating type) or that the pistons move forward and backward without sticking. Check for corrosion, dirt buildup or damage.
• Seal and Gasket Inspection: Ensure that the seals and gaskets around the air brake actuators and caliper pistons are intact and do not leak air. Leaks reduce braking power.
• Air System Inspection: Ensure that the compressor is functioning properly, that the air tanks maintain sufficient pressure, and that there are no air leaks in the lines or connection points. Check the function of the brake valves.
• Proper Lubrication: Use the appropriate type of lubricant (if applicable) at the locations and intervals specified by the manufacturer. Improper lubrication or lack of lubrication can cause the caliper mechanism to seize.
• Professional Service: For periodic maintenance and in case of malfunction, always consult an authorised service centre specialising in air brake systems. Correct diagnosis, use of original or equivalent quality parts, and proper installation are critical.
• Water Drainage: Regularly drain moisture from air tanks. Moisture in the air can freeze in winter or cause corrosion over time, damaging the brake system.

Safety, Regulations, and Future Outlook

Air disc brake systems are a fundamental component of modern heavy commercial vehicle safety standards. Many international regulations (e.g., the European ECE R13 regulation) encourage or mandate the use of disc brakes for specific vehicle categories and weights. These systems provide an ideal platform for active safety systems such as ABS and EBS to operate at their full potential.

In the future, with the widespread adoption of driverless vehicle technologies and more advanced emergency braking systems, the precision, speed, and reliability of air disc brakes will become even more critical. Therefore, investing in air disc brake systems will not only help fleet owners and operators meet current safety standards but also serve as a strategic step toward the future.

Conclusion

Air disc brake caliper systems are critical components that revolutionise the braking performance and safety of heavy commercial vehicles. Despite the initial investment cost, the superior stopping power, heat resistance, low maintenance requirements, and advanced control capabilities they offer provide significant long-term advantages.

A proper understanding of these systems, along with regular and professional maintenance, will enhance operational efficiency for heavy-duty vehicle operators while ensuring maximum safety on the roads. Air disc brakes are an indispensable component of modern transportation, ensuring safe journeys even under heavy loads.
