Brake Caliper Repair Kits: Bringing Heavy Vehicle Brake Systems Back to Life

Brake Caliper Repair Kits: Bringing Heavy Vehicle Brake Systems Back to Life

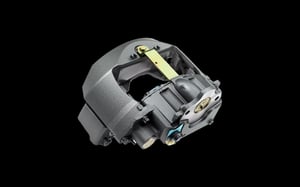

The brake systems of heavy commercial vehicles wear out over time due to constant heavy loads and harsh conditions. In particular, air disc brake calipers are critical to the vehicle's ability to stop, so their condition is of utmost importance. When a caliper malfunctions, air disc brake caliper repair kits offer a more economical and practical solution than complete replacement.

So, what are these repair kits, when and how are they used? Let's take a closer look.

Why Do Calipers Need Repair? Common Failures

Modern air disc brake calipers are highly durable, but the seals, gaskets, and moving parts inside can wear out over time or be damaged by external factors. Common causes of caliper failure include:

1. Piston Seizing or Locking: Damage or tearing of the seals surrounding the caliper pistons (especially the dust seals), allowing dirt, moisture, and salt to enter. This causes corrosion on the piston surface and/or the cylinder walls inside the caliper, preventing the piston from moving freely. Result: The brake stays engaged, the brake pad continuously rubs against the disc, or the brake does not engage at all.
2. Air Leak: Wear of the seals and gaskets in the air passages between the air brake actuator and the caliper or within the caliper itself. This causes a drop in the pressure required for braking and a decrease in brake performance. Whistling noises heard when the brake pedal is pressed may indicate a leak.
3. Oil/Grease Leak: Some caliper designs have points or mechanisms that require internal lubrication. Damage to the seals at these points can cause oil/grease leaks.
4. Wear/Seizure of Guide Pins (Floating Calipers): In floating calipers, the guide pins on which the caliper body moves and their seals can wear out or seize due to corrosion over time. This prevents the caliper from applying full and balanced pressure to the disc.
5. Dust Seal Tear: Tears in the rubber dust seals that protect the pistons from the external environment are one of the main causes of malfunctions. They allow dirt and moisture to enter.

What is an Air Disc Brake Caliper Repair Kit and What Does It Contain?

An air disc brake caliper repair kit is a specially prepared set for replacing worn, damaged, or leaking seals, boots, and some small parts inside a caliper. While the contents of the repair kit may vary depending on the caliper's brand, model, and type, it generally includes the following parts:

• Piston Seals: Internal seals that prevent air or hydraulic (in air-hydraulic systems) pressure from leaking.
• Dust Boots: Rubber boots or seals that protect piston rods or guide pins from the external environment (dirt, water, salt).
• O-rings: Rubber rings that provide sealing at various connection points or internal channels of the caliper body.
• Guide Pin Seals: Components that ensure the sealing of guide pin sockets in floating calipers.
• Special Grease/Lubricant: Special lubricants suitable for the moving parts and seals inside the caliper, resistant to heat and moisture.
• Small Bolts, Washers, or Clips: Small hardware that may need to be replaced during installation.

Repair kits are typically sold as sets for a single caliper.

When Should a Repair Kit Be Used, and When Should the Caliper Be Replaced?

A repair kit is an ideal solution when there is no mechanical damage to the caliper body (cast part) or the piston cylinder surfaces.

• Use a Repair Kit:
• When air leakage is detected (caused by internal sealing elements of the caliper).
• When the piston dust seal is torn or damaged (for intervention before corrosion begins).
• When the pistons are slightly stuck but there is no visible corrosion or scratches on the caliper inner surfaces.
• For general overhaul or preventive maintenance on high-mileage vehicles.
• Complete Caliper Replacement Should Be Performed:
• When there are cracks or breaks in the caliper housing.
• When there are deep scratches, pits, or excessive corrosion on the piston cylinder surfaces (the repair kit cannot provide proper sealing).
• When there is severe wear or damage to the caliper's main mechanical components (gears, shafts, etc.).
• When the caliper is stuck or deformed to the point where it cannot be repaired.

Important Note: The decision to repair should be made by a qualified technician after the caliper has been removed and thoroughly inspected. A caliper that appears intact from the outside may have serious internal damage.

Repair Process: Step-by-Step (General Outline)

Repairing an air disc brake caliper is a process that requires precision and expertise. Here are the general steps:

1. Draining the System: The air is completely drained from the air brake system.
2. Removing the Caliper: After removing the wheel, brake pads, and disc, the caliper is carefully removed from where it is attached to the vehicle. The air line connection is disconnected.
3. External Cleaning: The outer surface of the removed caliper is cleaned of dirt and grime.
4. Disassembly: The caliper is carefully disassembled using special tools according to the manufacturer's instructions. The pistons, gaskets, and other internal parts are removed.
5. Detailed Cleaning and Inspection: All parts inside the caliper, especially the piston cylinder bores and piston surfaces, are thoroughly cleaned. At this stage, the caliper body and pistons are thoroughly inspected for any damage (scratches, corrosion, deformation, etc.) that could prevent repair. This is the most critical step in the repair process.
6. Part Replacement: All old gaskets, seals, and other specified parts in the repair kit are replaced with new ones.
7. Lubrication: The manufacturer's recommended special grease or lubricant is applied to the specified points and parts. Using the wrong type of lubricant can damage the gaskets.
8. Assembly (Reassembly): The caliper is carefully reassembled in accordance with the manufacturer's instructions and correct torque values.
9. Installation on the Vehicle: The repaired caliper is reinstalled on the vehicle, and the air line connection is made.
10. System Filling and Bleeding: The air system is refilled. If necessary, the brake system is bled (automatic in some systems).
11. Check: The brake system is checked for correct air pressure, caliper function, and air leaks. Braking performance is tested with a test drive.

Quality Difference: Important Considerations When Selecting Repair Kits

Quality is of utmost importance when selecting repair kits. Seals and gaskets made from low-quality materials may fail again shortly, posing both a safety risk and additional costs.

Equivalent repair kits are available from authorized and reliable “aftermarket” manufacturers. High-quality kits use materials that are close to or equivalent to the original standards. Their prices are generally more affordable. When making a selection, the reliability of the brand and quality certifications (e.g., ISO) are important.

Cheap, unidentified repair kits should be avoided. The brake system is directly related to safety.

Advantages and Disadvantages of Repair

• Advantages:
• Cost: Generally more economical than a complete caliper replacement.
• Sustainability: Repairing and reusing the existing part reduces waste.
• Accessibility: If the caliper body is intact, a repair kit can provide a relatively quick solution.
• Disadvantages:
• Specialized Knowledge: Proper diagnosis, disassembly, cleaning, inspection, and reassembly require specialized knowledge, skills, and tools. Improper repairs can lead to serious safety issues.
• Risk of Hidden Damage: Internal damage (scratches, corrosion) that is not visible from the outside or through a simple inspection can cause the repair to fail.
• Time: The detailed cleaning and inspection process can sometimes take longer than replacing the part (however, repair may be faster if waiting for a replacement part).

Safety Comes First!

It is important to remember that air disc brake calipers are one of the most critical safety components of a vehicle. Caliper repair must be performed by qualified and experienced technicians using the appropriate equipment and genuine replacement parts. Amateur or incomplete repairs can lead to brake failure, accidents, and life-threatening situations.

Conclusion

Air disc brake caliper repair kits are a valuable solution for restoring the brake systems of heavy commercial vehicles to proper working order in certain failure situations in a cost-effective and efficient manner. However, the use of these kits is only possible with proper diagnosis, detailed inspection of the caliper, and, most importantly, professional application. Fleet managers and vehicle owners should always prioritize quality and safety when considering repair options for caliper issues and should rely on authorized service providers. Properly functioning brakes are the key to safe journeys.
